Note: This article covers Redshift Data source setup process. You can learn how to load data to Redshift Destination here.

How to set up Redshift integration

1. On the Data sources page, click on the Redshift tile. You can find it using the search field or just open the SQL category.
2. On the Redshift authorization page, fill in the following fields:
3. ~Enter the Host.
4. ~Enter the Port.
5. ~Enter the User.
6. ~Enter the Password.
7. ~Enter the name of the database to connect to.
8. ~Enter the name of the schema to use.
9. Fill in the form and click the Authorize button.

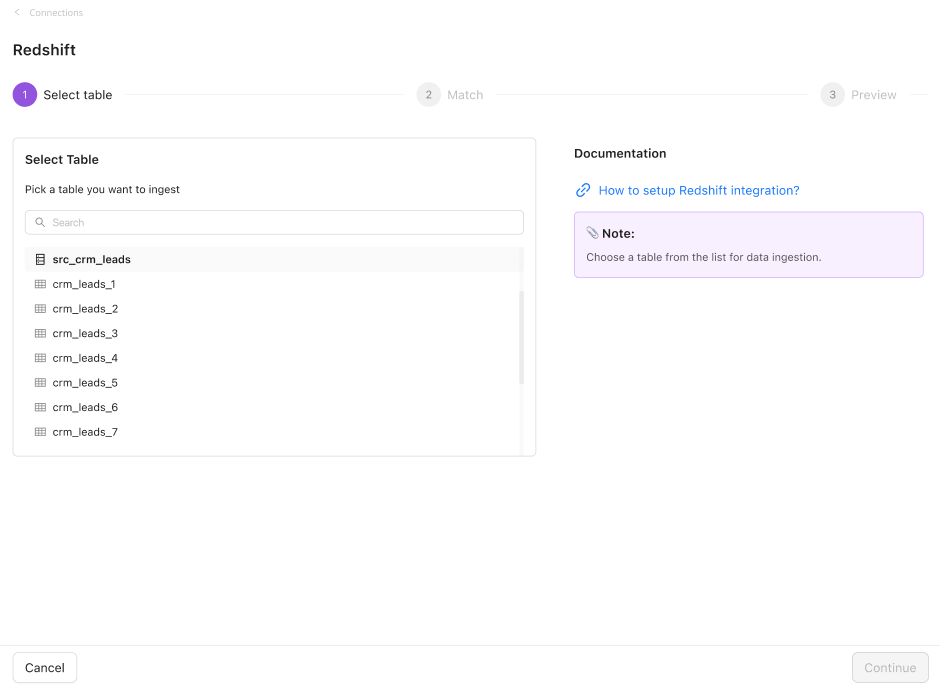

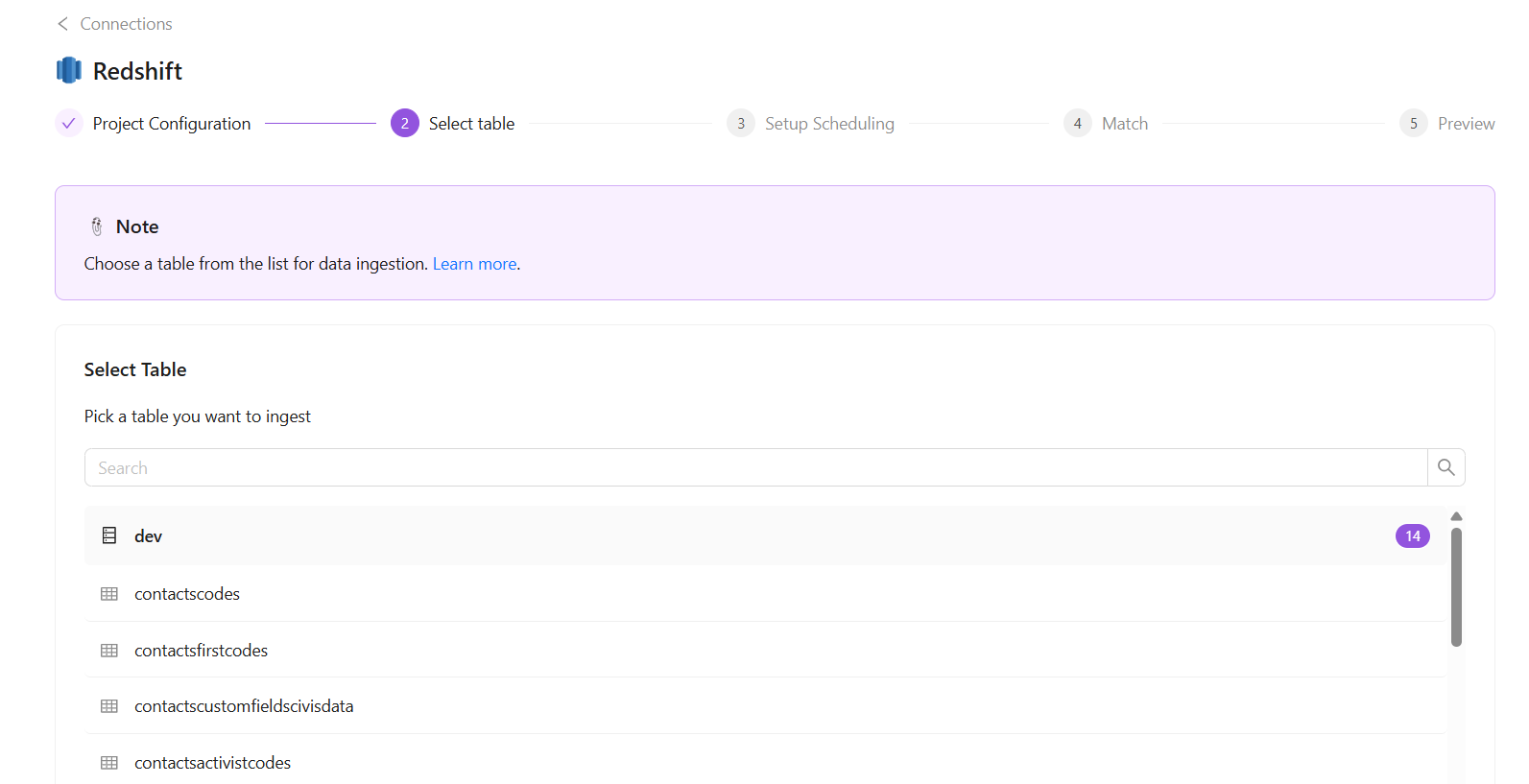

Step 1. Select table

1. Select a table from the schema you specified during authorization.

2. Click on the Continue button.

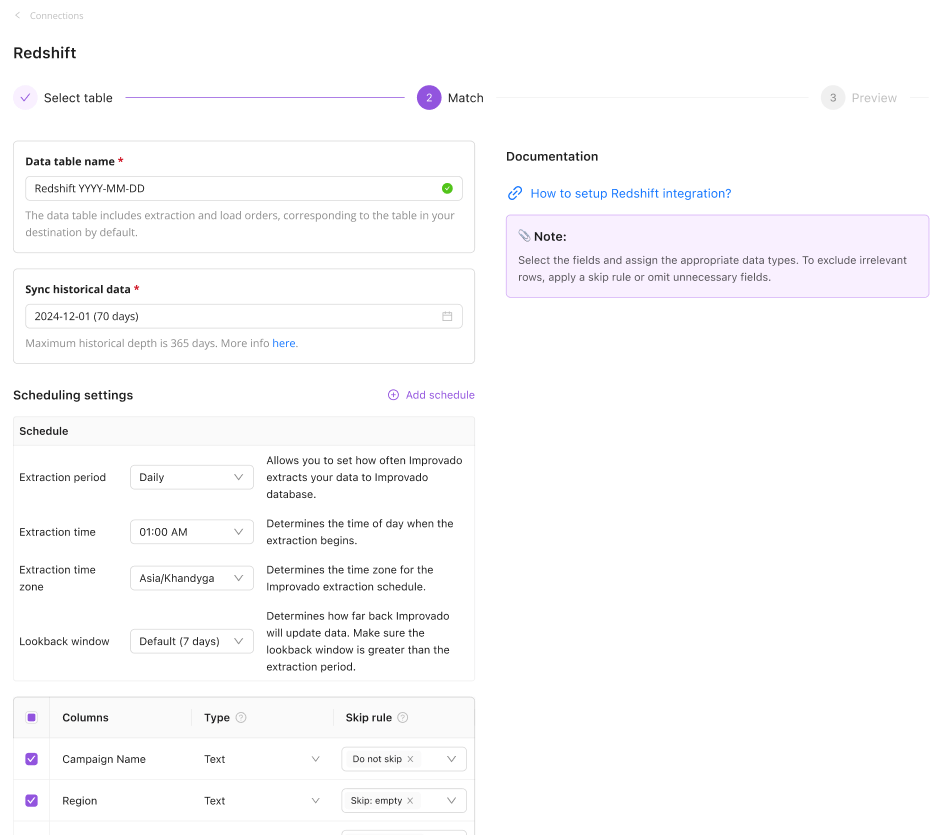

Step 2. Match page

1. Enter the data table name or leave it as is.
2. Select Sync historical data period. This setting allows you to extract historical data from the selected date range during the initial data extraction.

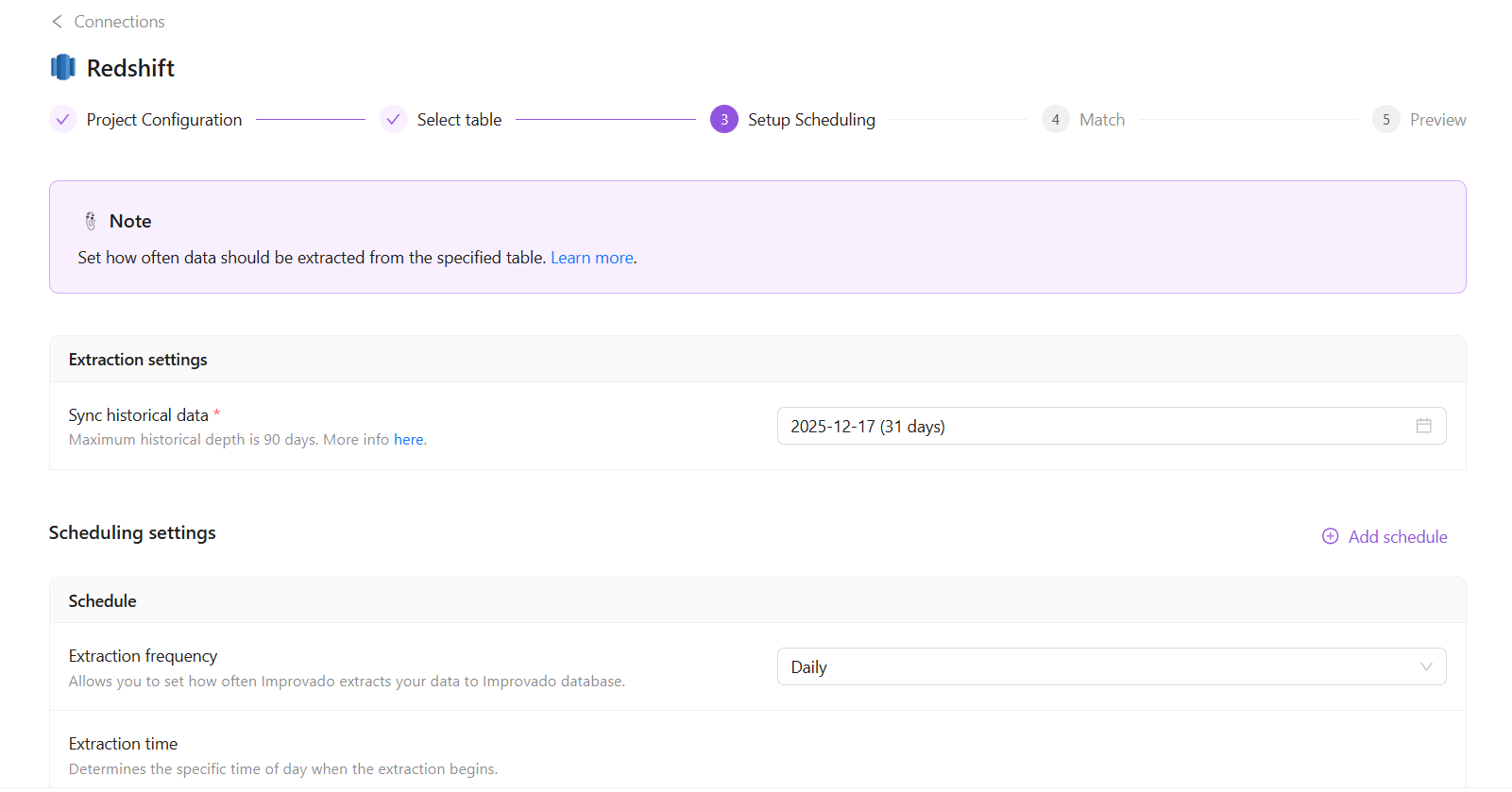

3. Configure your Extraction scheduling. Allows you to set how often your data is extracted to Improvado storage.

4. Select the fields you need to import. By default, all fields are selected.
5. Check the type. Each field in a data table can be assigned a text, number, or date type.
6. ~The date field is a unique date-key in the database and should be singular. Also, you have the flexibility to choose from a wide range of date formats for this field.
7. ~If you have field with numeric values that you don't want to include in your calculations, change the type from Number to Text.

{%docs-informer info title="Note"%} You can learn more about how to work with dates in Flat Data here. {%docs-informer-end%}

6. The skip rule allows you to exclude empty rows and rows with specific values in a selected field
7. ~Default to 'Do Not Skip': Ensures all data is initially included.
8. ~Multi-Select Options: Combine 'Skip: empty' and 'Skip: value' for targeted exclusions. Selecting 'Do Not Skip' disables other skip options.
9. ~Custom Rule addition: Add one custom rule; the form is disabled afterward to maintain focus
10. ~Custom Rule deletion:  Hover over and click on the red-highlighted basket icon next to the rule to exclude it.‍

‍Usage Note: the component is designed for straightforward value-based selections and does not support complex expressions like '<10'.

7. Click on the Import N fields button to continue.

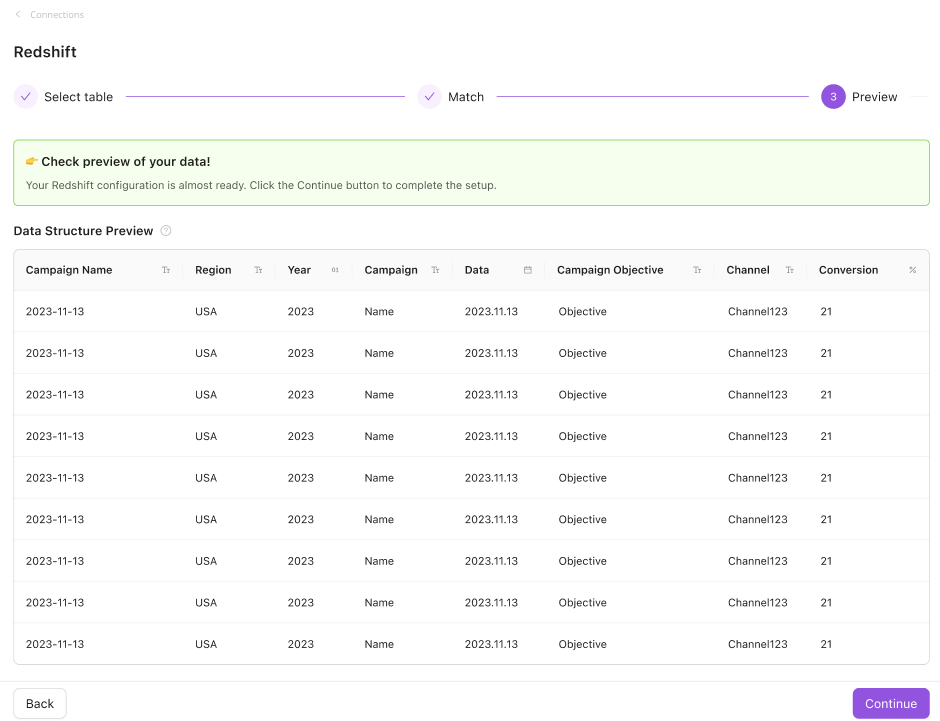

Step 3. Preview page

1. Check the Data Structure Preview.
   In this step, you see the first row of data that will be extracted after you click the Continue button.

2. Click the Continue button to confirm settings and proceed with data extraction.

Order Details page

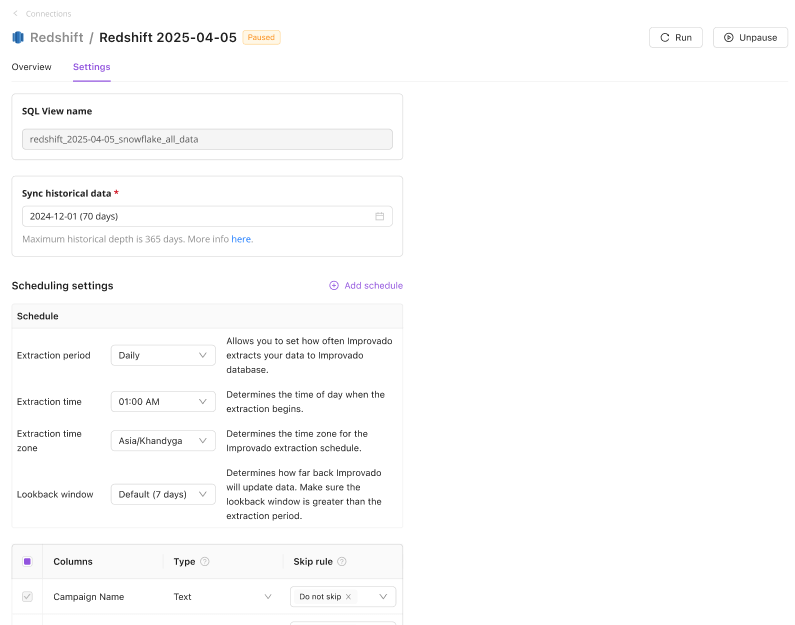

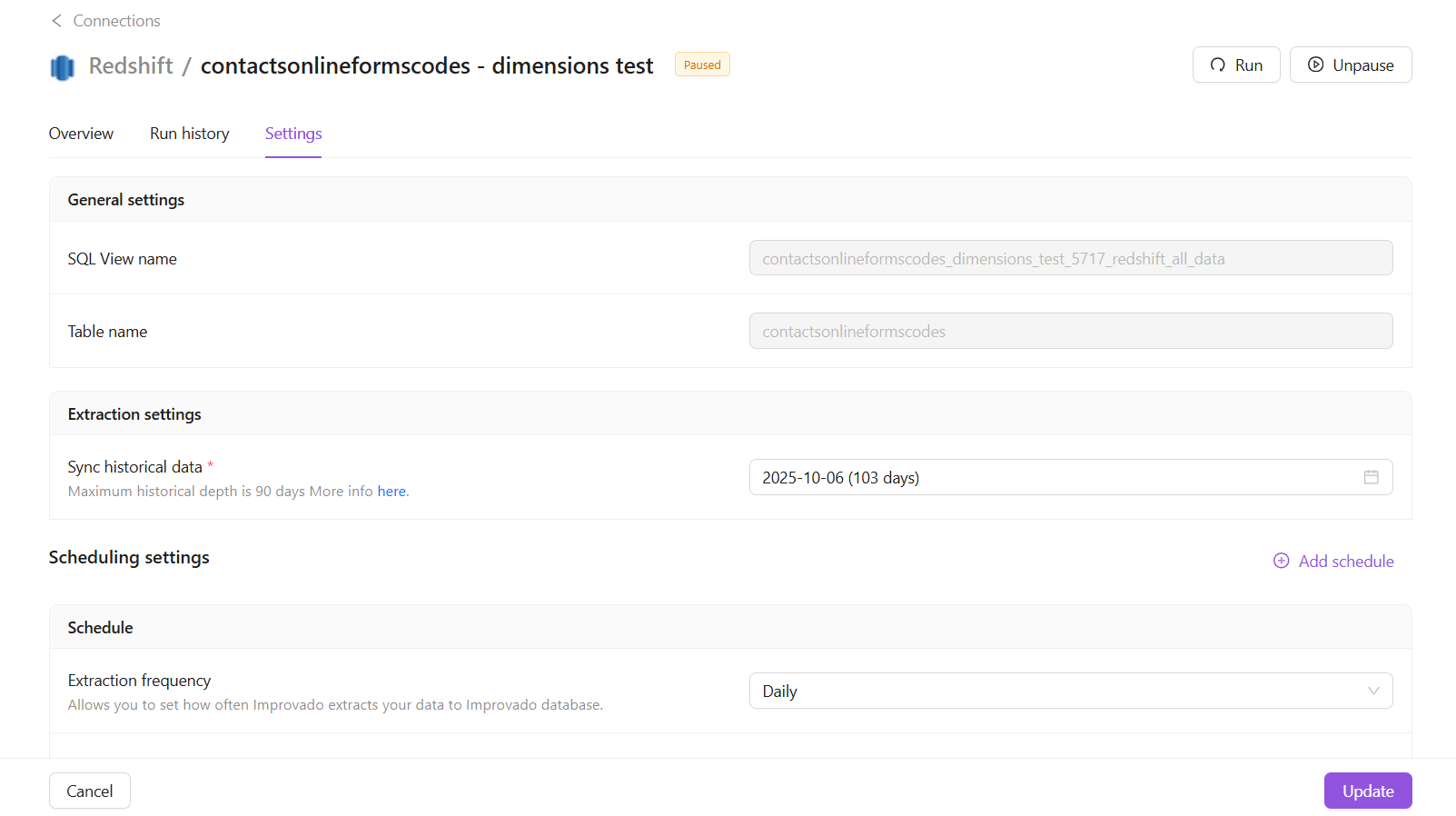

Settings tab

Here you can copy your SQL View name and edit historical data and scheduling settings for your data extraction.
