Facebook Ads data source in Improvado supports two report types based on the Facebook Marketing API Insights endpoint. Each report type uses different breakdown parameters to segment data.

Understanding the Difference

The Facebook Marketing API provides two types of breakdowns:

Breakdowns: Segment delivery metrics (impressions, clicks, spend, reach) by dimensions like age, gender, country, publisher_platform, device_platform. These are used in the Insights report.

Action Breakdowns: Segment specifically the actions/conversions data by action-specific dimensions like action_type, action_device, action_destination. These are used in the Actions report.

This is a Facebook API design - base performance metrics and action breakdowns cannot be combined in a single request.

Insights Report

Use this report for standard performance analysis with demographic and placement breakdowns.

What you get:‍

• Base metrics: impressions, clicks, spend, reach, frequency, cpc, cpm, ctr
• Conversion totals as aggregated values or dynamic columns
• Segmentation by age, gender, country, region, publisher_platform, platform_position, device_platform

‍What you do not get:

• Granular breakdown of conversions by action_type, action_device, or other action dimensions

Configuration Steps

Step 1. Log in to Improvado and navigate to the established Facebook Ads connection. Select the Insights report type.

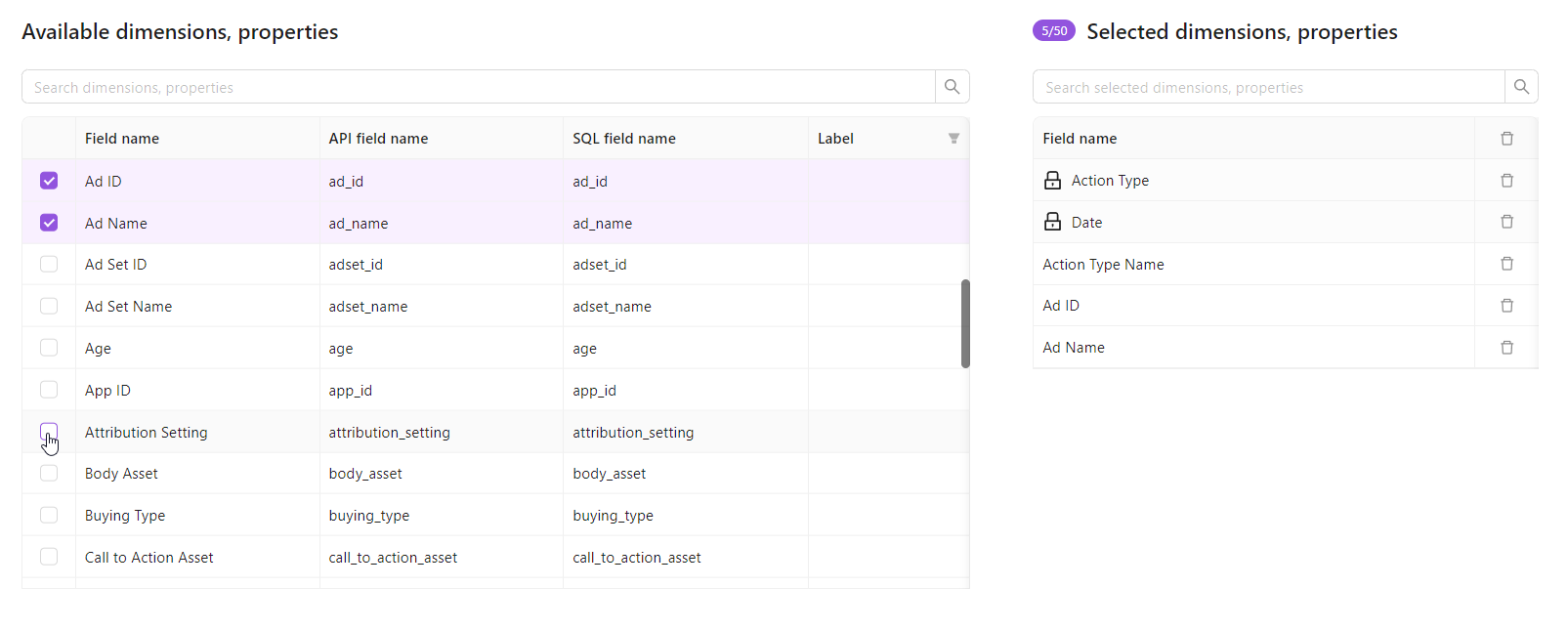

Step 2. Select the data level by including the appropriate fields:

• Ad level: include ad_id or ad_name
• Ad Set level: include adset_id or adset_name
• Campaign level: include campaign_id or campaign_name
• Account level: include only account_id

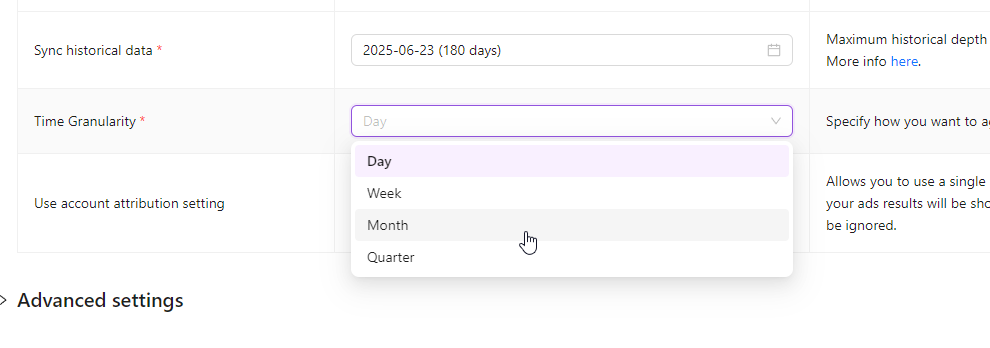

Step 3. Select time granularity: Day, Week, Month, or Quarter.

Step 4. Select metrics and breakdowns.

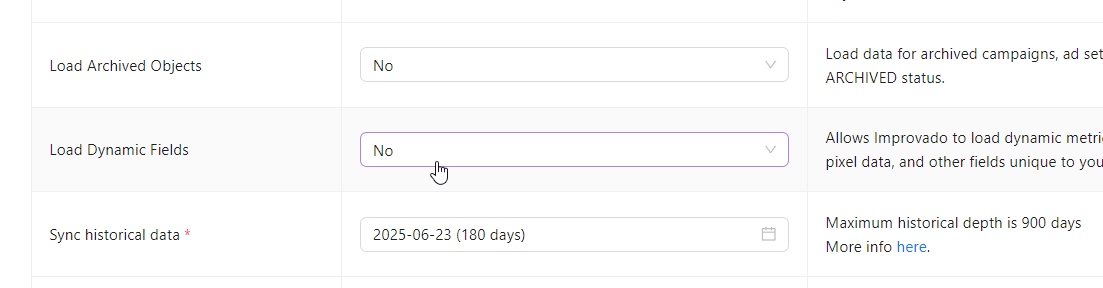

Step 5. (Optional) Enable Load Dynamic Metrics to get Custom Conversions and Custom Pixel Events as separate columns in your dataset.

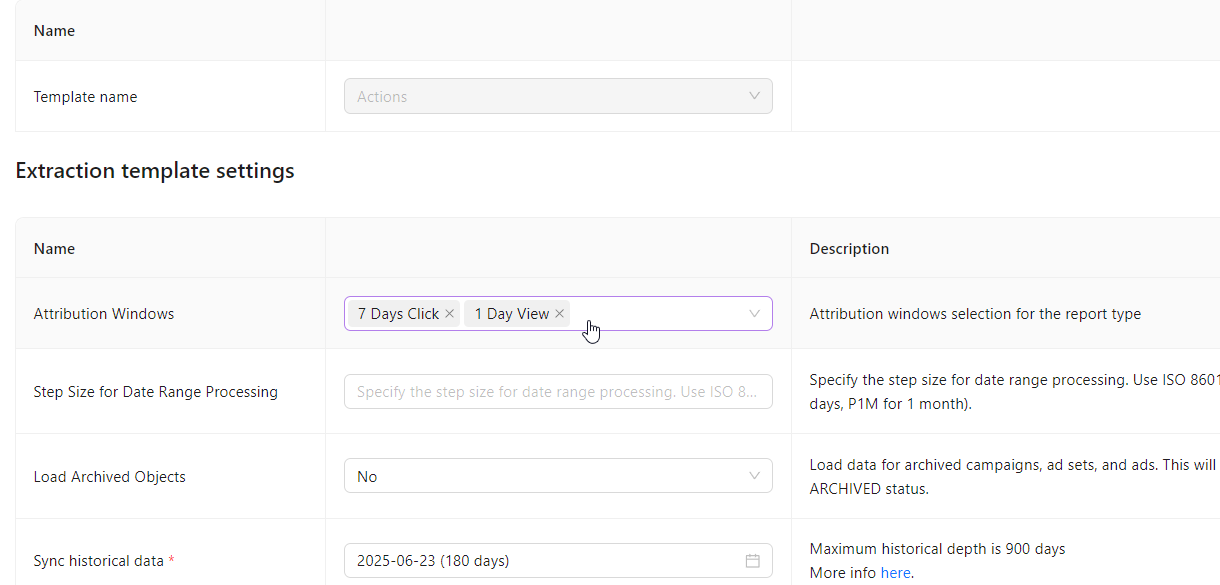

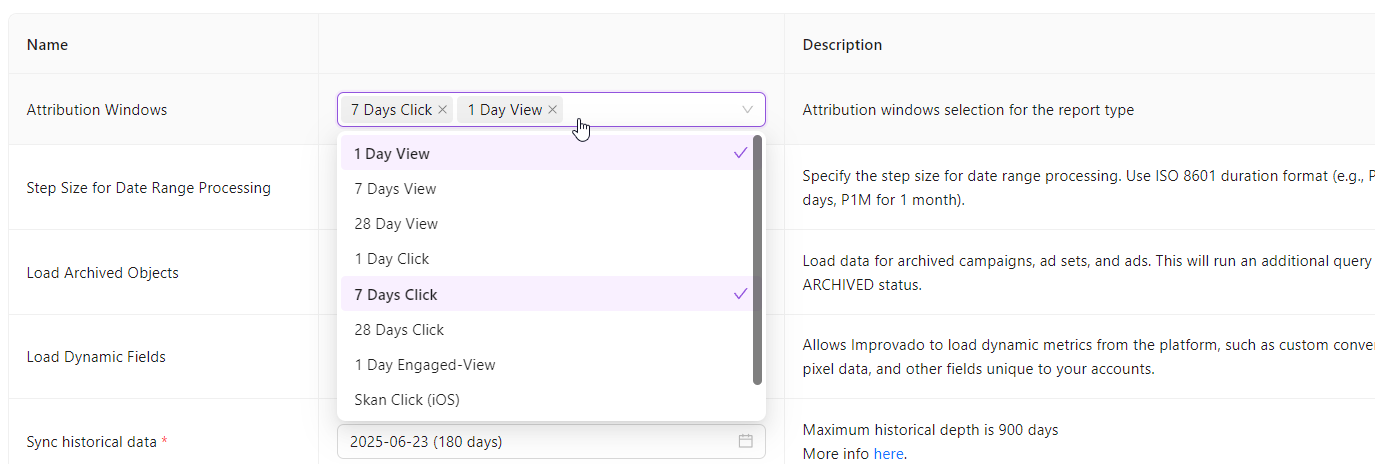

Step 6. (Optional) Configure attribution windows: 1d_click, 7d_click, 28d_click, 1d_view, 7d_view.

Step 7. (Optional) Apply pre-filters to limit data at the API level. Learn more here.

Step 8. Wait for data extraction to finish.

Actions Report

Use this report for granular conversion analysis with action-specific breakdowns.

What you get:

• Conversion data segmented by action_type, action_device, action_destination, action_reaction
• Carousel card performance via action_carousel_card_id
• Video engagement details via action_video_sound, action_video_type
• Each breakdown combination produces a separate row

What you do not get:

• Base performance metrics (impressions, clicks, spend, reach, frequency)
• This is a Facebook API limitation, not an Improvado restriction

Available Action Breakdowns

Configuration Steps

Step 1. Log in to Improvado and navigate to the established Facebook Ads connection. Select the Actions report type.

Step 2. Select the data level by including the appropriate fields (same as Insights).

Step 3. Select time granularity: Day, Week, Month, or Quarter.

Step 4. Select action breakdowns for your report. Each selected breakdown multiplies the number of rows in your dataset.

Step 5. (Optional) Configure attribution windows and pre-filters. Learn more about pre-filters here.

Step 6. Wait for data extraction to finish.

Dynamic Metrics & Data Representation

How Conversion Metrics Are Formed

In the Insights report, both standard and custom conversions are formed dynamically at runtime. The API returns action data in arrays (actions, action_values, conversions, conversion_values, catalog_segment_actions, etc.), which Improvado then decomposes into individual metric columns.

Important: The original array fields (actions, action_values, conversions, conversion_values, catalog_*) will appear empty in your final dataset. This is expected behavior - their contents have been unpacked into dedicated metric columns like:

• `purchases`, `leads`, `add_to_cart`, `link_click`
• `purchase_value`, `lead_value`, `add_to_cart_value`
• Custom conversions: `offsite_conversion_fb_pixel_custom_<event_name>`
• And many others based on your account configuration

Column View vs Row View

The key difference between Insights and Actions is how conversion data is structured:

Insights (Column View):

‍

Actions (Row View / Transposed):

Choose Insights when you need a wide dataset with all metrics in columns. Choose Actions when you need to analyze individual action types with additional breakdowns (action_device, action_destination, etc.).

Breakdown Limitations

Facebook API enforces restrictions on breakdown combinations:

• Not all breakdowns can be combined in a single request
• Offsite conversion events do not support delivery breakdowns (age, gender, region) due to iOS 14 privacy changes
• Reach metric is limited to 13 months of history when used with breakdowns like age, gender, country, placement, device
• Complex breakdown combinations may result in partial or truncated responses

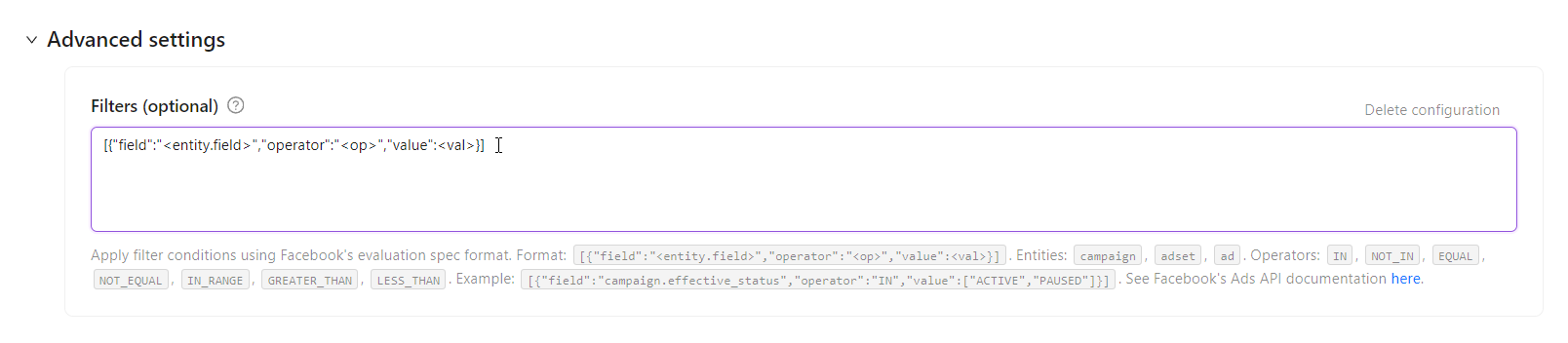

Pre-filters

Both reports support filtering at the API level using Facebook's evaluation spec format:

Format:

```[{"field":"<entity.field>","operator":"<op>","value":<val>}]```

Entities: campaign, adset, ad

Operators: IN, NOT_IN, EQUAL, NOT_EQUAL, IN_RANGE, GREATER_THAN, LESS_THAN

Example — Active campaigns only:

```[{"field":"campaign.effective_status","operator":"IN","value":["ACTIVE"]}]```

FAQ

Q: Why doesn't Actions report have impressions and clicks?

A: The Facebook Marketing API separates delivery metrics (breakdowns) from conversion metrics (action_breakdowns). These cannot be combined in a single API request. This is a platform limitation.

‍

Q: How do I get custom conversion data?

A: Use Insights with Load Dynamic Metrics enabled. Custom Conversions and Custom Pixel Events will appear as separate columns.

‍

Q: Why is reach data missing for older date ranges?

A: As of June 2025, Facebook limits reach data to 13 months when used with breakdown dimensions. Queries beyond this window return null values for reach.
