Handling Functions in Custom Formulas in Wizard

Updated on

Jun 19, 2025

To use any function in Wizard, you can leverage the Custom Formula functionality. In this mode, any custom SQL functions are supported, allowing you to create unique transformations by applying the formulas you need, even if they aren’t included in the standard UI dropdowns.

CustomField leverages AI within the custom filters, making the product highly flexible and allowing you to incorporate formulas that aren’t natively supported in the UI. This means you can easily extend the standard functionality, adapting it to fit your specific needs and cases.

Below we will cover the most common use cases together.

Use Cases

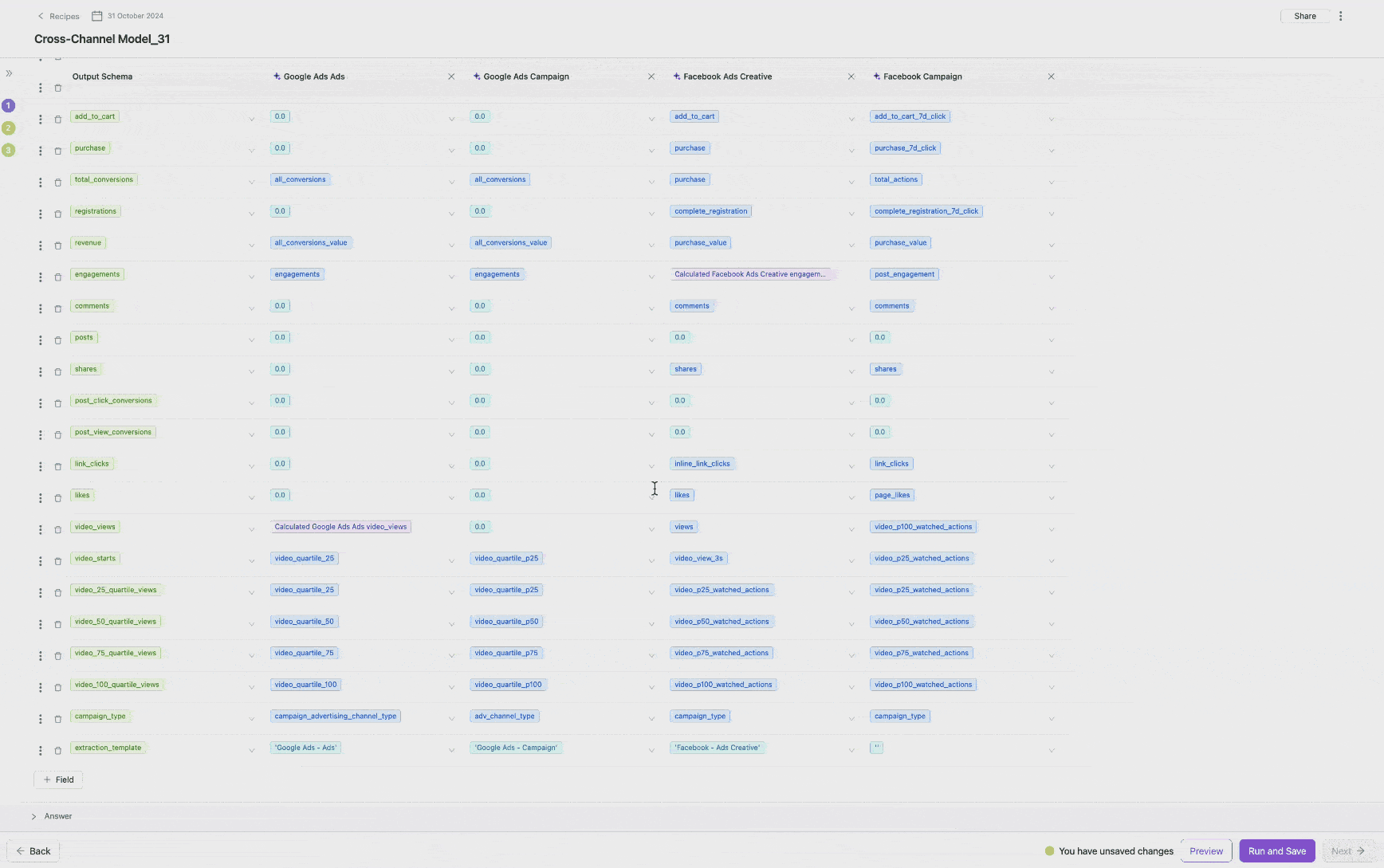

SplitByChar

The SplitByChar function enables you to divide a string into segments based on a specified delimiter (character or symbol). This function is particularly useful when you want to separate information stored in a single text field.

Formula to apply for campaign name:

```splitByChar('-', campaign_name[1])```

The only thing you need to change is the delimiter and position to get it to work on your data.

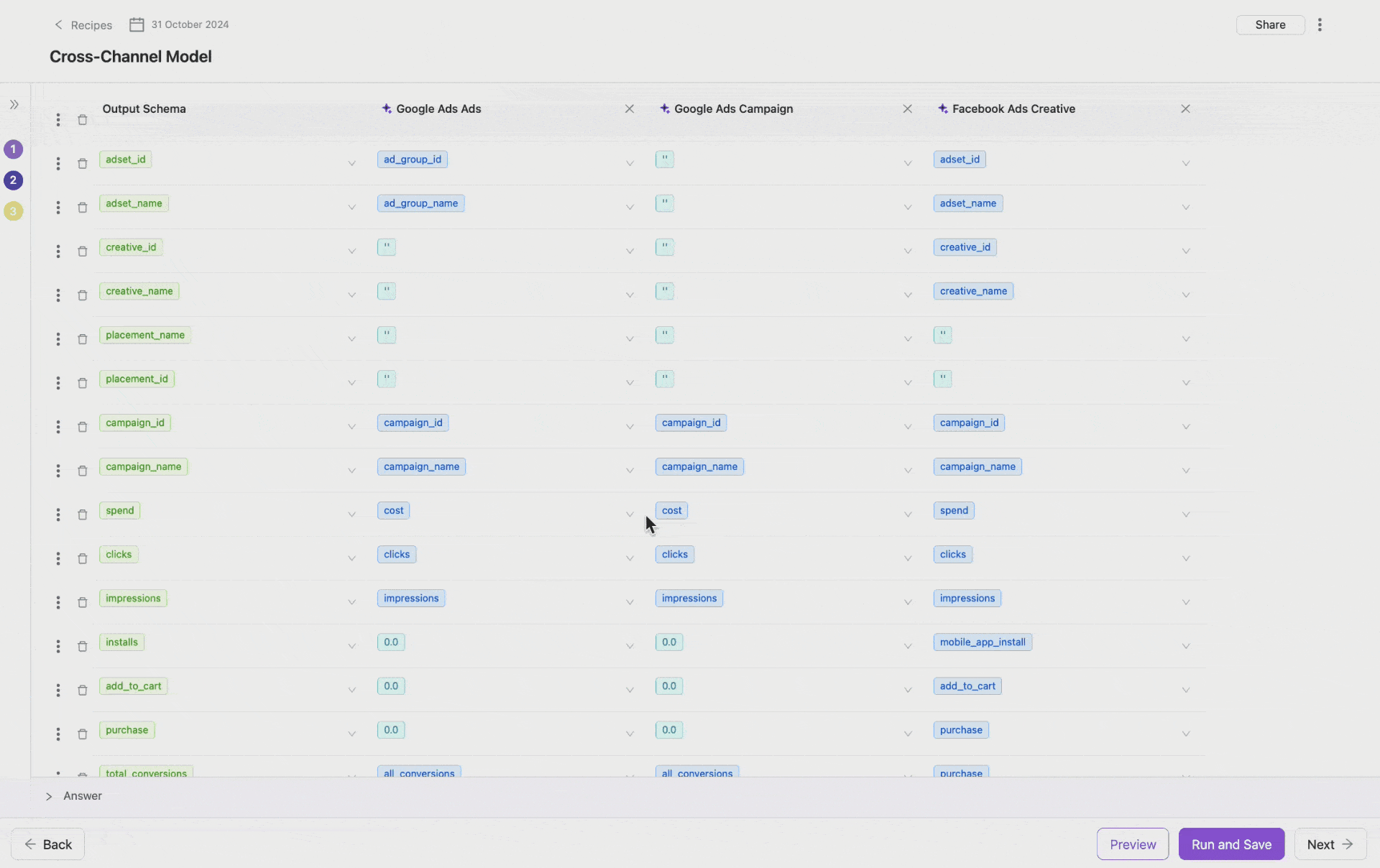

toFloat64 / toString

Sometimes, data can contain different types. For example, a campaign ID can be either a string or a number, depending on the data source. This creates a supertype problem because a table cannot have multiple data types within a single column. To resolve this issue, we can apply a custom formula to the problematic fields.

Formula to apply for a string that should be a numeric value:

```toFloat64(clicks)```

Formula to apply for a numeric value that should be a string:

```toString(campaign_id)```

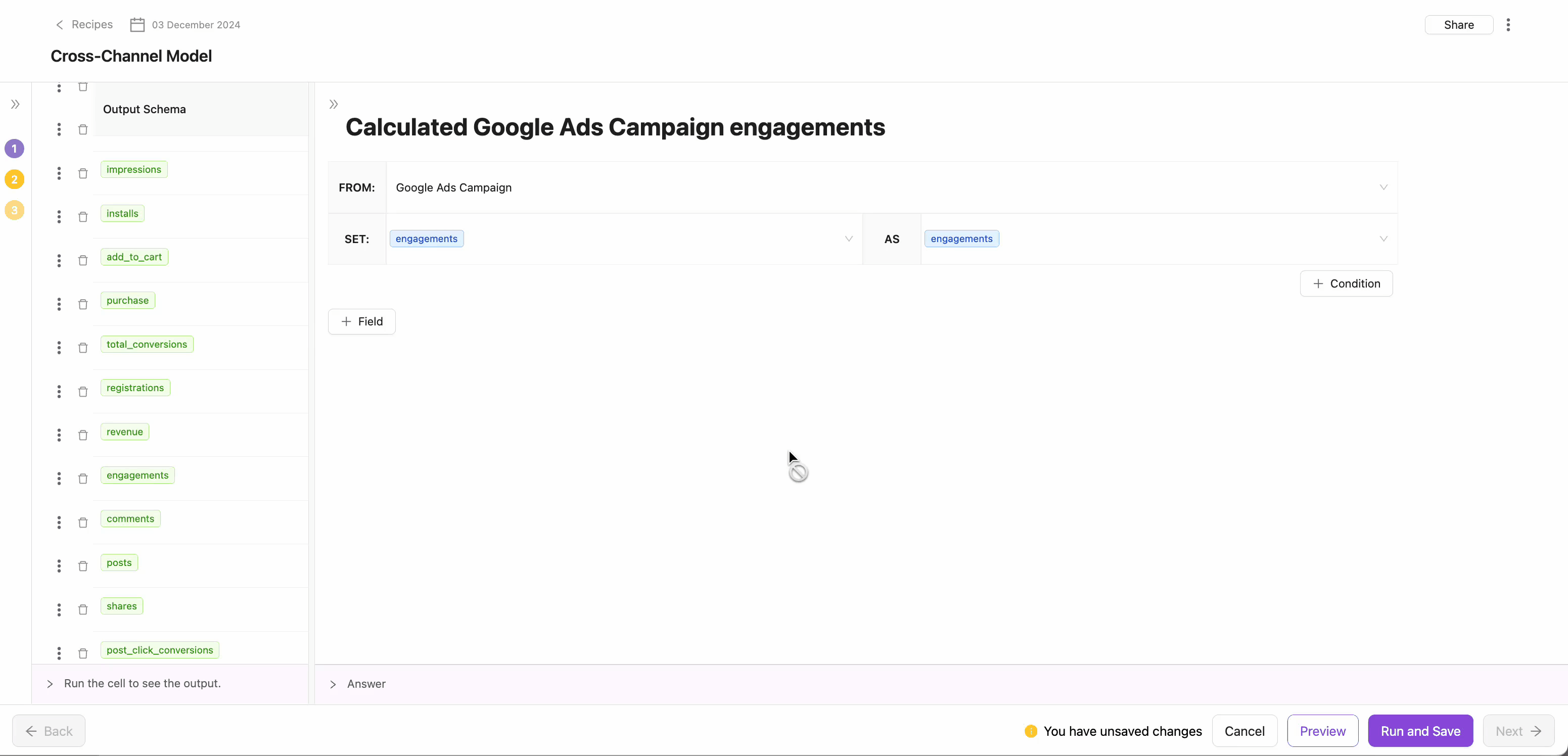

replaceRegexpAll

The replaceRegexpAll function can be used to clean up numeric values stored as strings by removing unwanted characters, such as currency symbols or text, leaving only the numeric part. This is particularly useful for fields like costs, revenues, or other numeric values that might include symbols or text.

Let’s take a look at usage based on the example:

Let’s say you have a field that contains costs with a currency symbol (e.g., $123.45, €678,90, or USD 1000) and you want to remove the currency symbol or text and extract only the numeric value.

Formula to apply:

```toFloat64(replaceRegexpAll(costs, '[^0-9.]', ''))```

The formula will return the number without currency and make field as a numeric.

regexpExtract

The regexpExtract function is used to extract a specific part of a string that matches a regular expression pattern. It searches for text within a field that matches the provided regular expression and extracts a specific capturing group.

Let’s take a look on usage based on example:

Campaign name equal product-id-12345

Formula to apply for ID extraction:

```regexpExtract(campaign_name, "product-id-(\\d+)", 1)```

The formula will return just id ‘12345’.

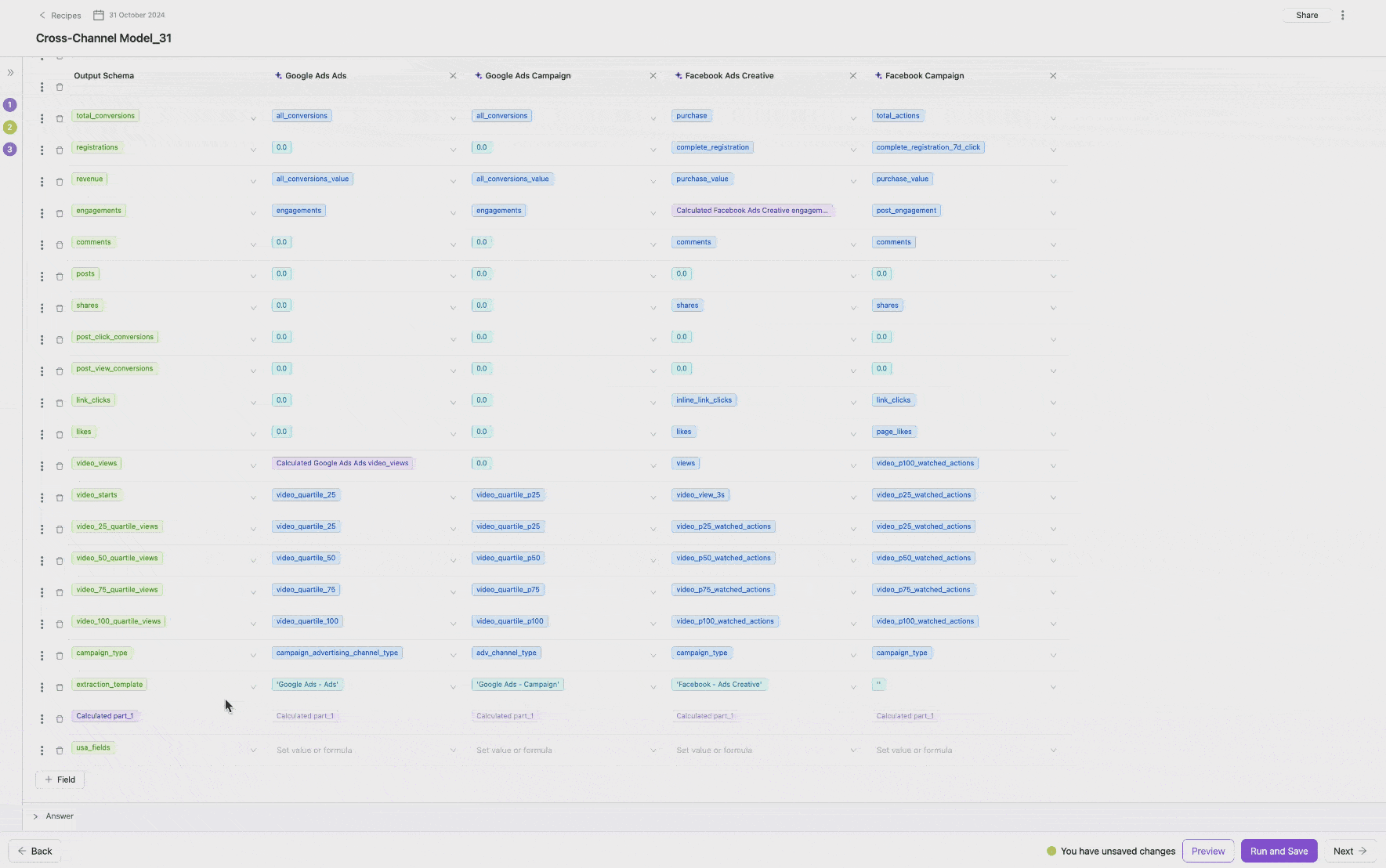

lower / upper

The Lower and Upper functions adjust the case of text to lowercase or uppercase, respectively. This standardization is helpful when dealing with fields that may have inconsistent casing.

Formula to apply on the field to make entities in lower case:

```lower(adset_name)```

Formula to apply on the field to make entities in upper case:

```upper(campaign_name)```

{%docs-informer info%} The following JSON and Trim use cases are applicable only for ETL, not for ELT. {%docs-informer-end%}

Working with JSON Data in Recipes

In the Recipes product, you can process JSON data contained in string columns using special functions in the Custom Formula block. This guide describes the main functions for extracting and analyzing JSON data.

1. JSONExtractString - Extract String Values

Extracts a string value by the specified key from a JSON object.

Syntax:

JSONExtractString(json_column, 'key_path')
JSONExtractString(json_column, 'key1', 'key2', 'key3') // for nested paths

Examples:

For column ```user_data``` containing:

{"name": "John", "email": "john@example.com", "settings": {"theme": "dark"}}

Formula Examples:

JSONExtractString(user_data, 'name')

Result: ```John```

JSONExtractString(user_data, 'email')

Result: ```john@example.com```

JSONExtractString(user_data, 'settings', 'theme')

Result: ```dark```

2. JSONExtractInt - Extract Integer Values

Extracts a numeric value and converts it to a 64-bit signed integer.

Syntax:

JSONExtractInt(json_column, 'key_path')
JSONExtractInt(json_column, 'key1', 'key2')  // for nested paths

Examples:

For column ```order_data``` containing:

{"order_id": 12345, "quantity": 3, "metadata": {"priority": 1}}

Formula Examples:

JSONExtractInt(order_data, 'order_id')

Result: ```12345```

JSONExtractInt(order_data, 'quantity')

Result: ```3```

JSONExtractInt(order_data, 'metadata', 'priority')

Result: ```1```

3. JSONExtractFloat - Extract Floating Point Numbers

Extracts a numeric value as a 64-bit floating point number.

Syntax:

JSONExtractFloat(json_column, 'key_path')
JSONExtractFloat(json_column, 'key1', 'key2')  // for nested paths

Examples:

For column ```product_data``` containing:

{"price": 99.99, "discount": 0.15, "stats": {"rating": 4.7}}

Formula Examples:

JSONExtractFloat(product_data, 'price')

Result: ```99.99```

JSONExtractFloat(product_data, 'discount')

Result: ```0.15```

JSONExtractFloat(product_data, 'stats', 'rating')

Result: ```4.7```

4. JSONExtractBool - Extract Boolean Values

Extracts a boolean value (true/false). Returns 0 for false, 1 for true.

Syntax:

JSONExtractBool(json_column, 'key_path')
JSONExtractBool(json_column, 'key1', 'key2')  // for nested paths

Examples:

For column ```settings_data``` containing:

{"active": true, "notifications": false, "features": {"premium": true}}

Formula Examples:

JSONExtractBool(settings_data, 'active')

Result: ```1``` (true)

JSONExtractBool(settings_data, 'notifications')

Result: ```0``` (false)

JSONExtractBool(settings_data, 'features', 'premium')

Result: ```1``` (true)

5. JSONExtractArrayRaw - Extract Arrays

Extracts array data as a JSON string. Returns the raw JSON representation of the array.

Syntax:

JSONExtractArrayRaw(json_column, 'key_path')
JSONExtractArrayRaw(json_column, 'key1', 'key2')  // for nested paths

Examples:

For column ```user_profile``` containing:

{"tags": ["new", "premium", "active"], "scores": [95, 87, 92]}

Formula Examples:

JSONExtractArrayRaw(user_profile, 'tags')

Result: ```["new", "premium", "active"]```

JSONExtractArrayRaw(user_profile, 'scores')

Result: ```[95, 87, 92]```

6. JSONHas - Check Key Existence

Checks if the specified key exists in the JSON object. Returns 1 if exists, 0 if not.

Syntax:

JSONHas(json_column, 'key_path')
JSONHas(json_column, 'key1', 'key2')  // for nested paths

Examples:

For column ```event_data``` containing:

{"event": "purchase", "amount": 150, "metadata": {"source": "mobile"}}

Formula Examples:

JSONHas(event_data, 'event')

Result: ```1``` (true)

JSONHas(event_data, 'user_id')

Result: ```0``` (false)

JSONHas(event_data, 'metadata', 'source')

Result: ```1``` (true)

7. JSONLength - Get JSON Object or Array Length

Returns the number of elements in a JSON object or array as UInt64.

Syntax:

JSONLength(json_column, 'key_path')
JSONLength(json_column, 'key1', 'key2')  // for nested paths

Examples:

For column ```data``` containing:

{"items": ["a", "b", "c"], "properties": {"x": 1, "y": 2, "z": 3}}

Formula Examples:

JSONLength(data, 'items')

Result: ```3```

JSONLength(data, 'properties')

Result: ```3```

JSONLength(data)

Result: ```2``` (number of top-level keys)

8. JSONType - Determine Value Type

Returns the type of a value in JSON. Possible return values: "String", "Int64", "Float64", "Bool", "Array", "Object", "Null".

Syntax:

JSONType(json_column, 'key_path')
JSONType(json_column, 'key1', 'key2')  // for nested paths

Examples:

For column ```mixed_data``` containing:

{"name": "test", "count": 42, "active": true, "tags": [], "meta": null}

Formula Examples:

JSONType(mixed_data, 'name')

Result: ```String```

JSONType(mixed_data, 'count')

Result: ```Int64```

JSONType(mixed_data, 'active')

Result: ```Bool```

JSONType(mixed_data, 'tags')

Result: ```Array```

JSONType(mixed_data, 'meta')

Result: ```Null```

Useful Function Combinations

Check Existence and Extract Value

if(JSONHas(json_column, 'optional_field'),
  JSONExtractString(json_column, 'optional_field'),
  'Default value')

Working with Nested Structures

JSONExtractString(data, 'level1', 'level2', 'target_field')

Conditional Extraction Based on Type

if(JSONType(data, 'value') = 'String',
  JSONExtractString(data, 'value'),
  toString(JSONExtractInt(data, 'value')))

Error Handling

If the specified key is not found or the JSON is invalid, functions return:

  • ```JSONExtractString``` → empty string ```""```
  • ```JSONExtractInt``` → ```0```
  • ```JSONExtractFloat``` → ```0.0```
  • ```JSONExtractBool``` → ```0``` (false)
  • ```JSONHas``` → ```0``` (false)
  • ```JSONLength``` → ```0```
  • ```JSONType``` → ```"Null"```

Usage Recommendations

1. Always validate JSON using ```JSONHas``` before extracting values

2. Use multiple arguments for nested paths instead of complex string paths

3. Handle missing keys with conditional operators

4. Cache results of complex JSON operations for better performance

5. Use appropriate extraction function for your expected data type

Real-World Scenarios

Extracting User Information

Sample JSON:

{"user": {"id": 123, "profile": {"name": "Anna", "age": 28, "premium": true}}}

Formulas:

JSONExtractInt(user_data, 'user', 'id')
JSONExtractString(user_data, 'user', 'profile', 'name')
JSONExtractInt(user_data, 'user', 'profile', 'age')
JSONExtractBool(user_data, 'user', 'profile', 'premium')
E-commerce Event Analysis

Sample JSON:

{"event": "purchase", "amount": 299.99, "items": ["item1", "item2"], "payment": {"method": "card", "currency": "USD"}}

Formulas:

JSONExtractString(event_data, 'event')
JSONExtractFloat(event_data, 'amount')
JSONLength(event_data, 'items')
JSONExtractString(event_data, 'payment', 'method')
JSONExtractString(event_data, 'payment', 'currency')

Quick Reference Table

Function Purpose Return Type Example Usage
JSONExtractString Extract text values String JSONExtractString(data, 'name')
JSONExtractInt Extract whole numbers Int64 JSONExtractInt(data, 'count')
JSONExtractFloat Extract decimal numbers Float64 JSONExtractFloat(data, 'price')
JSONExtractBool Extract true/false UInt8 (0/1) JSONExtractBool(data, 'active')
JSONExtractArrayRaw Extract arrays String (JSON) JSONExtractArrayRaw(data, 'items')
JSONHas Check if key exists UInt8 (0/1) JSONHas(data, 'field')
JSONLength Count elements UInt64 JSONLength(data, 'array')
JSONType Get value type String JSONType(data, 'field')

Important Notes

  • All functions support nested access using multiple string arguments
  • Functions return default values (empty string, 0, false) for missing keys
  • Boolean values are returned as integers: 1 for true, 0 for false
  • For complex nested structures, use multiple arguments instead of dot notation in paths

Trim Functions

In the Recipes product, you can clean and process string data using powerful trimming functions in the Custom Formula block. This guide covers the essential trimming functions available in ClickHouse and advanced techniques for custom character removal.

These functions are designed to remove space characters (ASCII 32) from your strings. They do not remove other whitespace like tabs (```\\t```) or newlines (```\\n```) by default.

1. trim

Removes space characters from both the beginning and end of a string.

Syntax:

trim(string_column)

Examples:

For column ```user_input```

Formula Examples:

trim(user_input)

Input: ```"  Hello World  "```

Output: ```"Hello World"```

2. ltrim

Removes space characters only from the beginning (left side) of a string.

Syntax:

ltrim(string_column)

Examples:

For column ```product_name```

Formula Examples:

ltrim(product_name)

Input: ```" iPhone 15"```

Output: ```"IPhone 15"```

Input: ```" Coffee Beans "```

Output: ```"Coffee Beans "``` (trailing spaces remain)

3. rtrim

Removes space characters only from the end (right side) of a string.

Syntax:

rtrim(string_column)

Examples:

For column ```description```

Formula Examples:

rtrim(description)

Input: ```"Premium Product "```

Output: ```"Premium Product"```

Input: ```" Great Item "```

Output: ```" Great Item"``` (leading spaces remain)

Quick Reference Table

Function Purpose Syntax
trim(s) Remove space characters from both sides trim(column_name)
ltrim(s) Remove space characters from left side ltrim(column_name)
rtrim(s) Remove space characters from right side rtrim(column_name)

Conclusion

Custom functions within a Custom Formula offer the flexibility to tailor transformations precisely to your needs. The examples provided demonstrate the range of possibilities, you can implement any custom formula as long as it’s a valid SQL function. This means there are essentially no limitations beyond what SQL itself supports, giving you the freedom to apply the transformations you need without restriction.
